 Structured packing series

【Taxonomy】:PRODUCT
【Article reading quantity】:
【Manager Chen】:+86-13383181511
【Manager Wang】:+86-13231851511
【Telephone】:+86-0318-7615090
【Email】:sales@yuanhaiwiremesh.com
【Email】:sales1@yuanhaiwiremesh.com
【Address】:East of Huang Cheng village, Huang Cheng Township, Anping County, Hengshui, Hebei, China

  • product details

  • Structured packing seriesStructured packing series
    Structured packing seriesStructured packing series
    Structured packing seriesStructured packing series
    Structured packing seriesStructured packing series

    Metal corrugated packing grooves of the plate with the surface made of corrugated metal packing to maintain the structural features, enhanced distribution and packing of liquid wetting properties were improved mass transfer efficiency. Diameter of more than 1.5m, fill the form of the system component blocks. Applications: metal plate corrugated packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.

    Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.

    Structured packing series

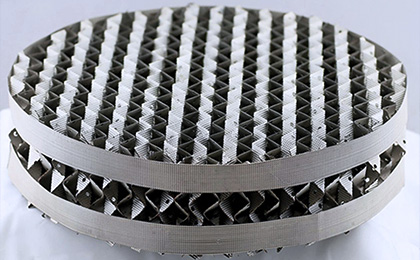

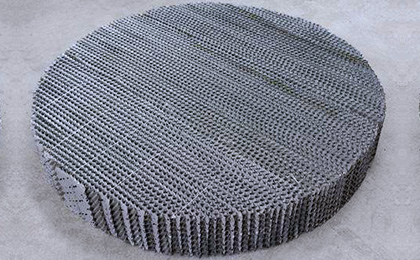

    Metal corrugated plate packing is made of sheet metal punch made of corrugated sheets, surface do special lines. In order to improve the effective mass transfer area, or the formation of two-way penetration.

    Metal corrugated plate packing liquid film like leaves, and redistribution in the filler on the contact area two, gas is continuous, winding through the filler, large flux, low resistance, high mass transfer efficiency, In the refining work, metal corrugated plate packing in vacuum distillation tower, gas fractionation tower, tower of gas absorption, and achieved good technical and economic effect.

    Corrugated plate packing with flux, resistance, pressure drop, mass transfer, separation rate, low cost, anti-blocking properties, is a universal type of filler.

    Metal corrugated packing. used in petrochemical, fertilizer industries, pharmaceutical industry, natural gas purification, smelting and other industrial sectors, the largest 15m in diameter than the tower, is the mainland of the tower and an important area of application.
